Altronix Power Supply Charger 8 Fused Outputs 12/24VDC @ 6A Aux Output FAI LinQ2 Ready 115VAC BC300 Enclosure - EFLOW6N8

Original price $541.99 - Original price $541.99
Original price
$541.99
$541.99 - $541.99
Current price $541.99
SKU EFLOW6N8

Input/Output

  • 120VAC, 60Hz, 3.5A.
  • Input fuse: 5A/250V.
  • Eight (8) fuse protected outputs.
  • 12VDC or 24VDC @ 6.0A supply current.
  • Outputs are rated at 2.5A.
  • Auxiliary Power-Limited output rated @ 1A (unswitched).
  • Over Voltage Protection

*Battery Backup* BATTERY ARE SOLD SEPARATELY

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Supervision

  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
  • Battery fail & presence supervision (form "C" contacts).
  • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Fire Alarm Disconnect

  • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

    Visual Indicators

    • Green AC Power LED indicates 120VAC present.
    • AC input and DC output LED indicators.

    Additional Features

    • Short circuit and overload protection.

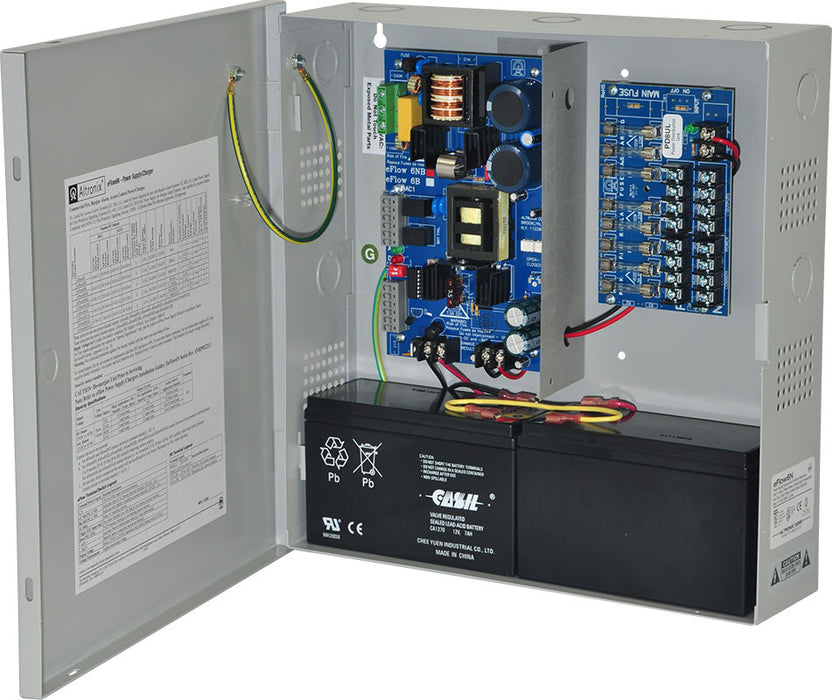

    • Unit is complete with power supply, enclosure, battery leads and cam lock.
