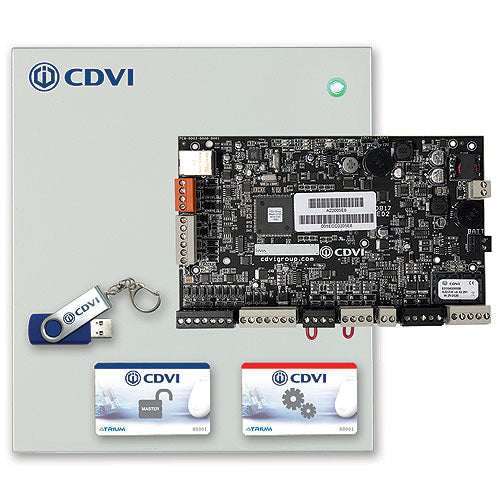

CDVI Atrium Hybrid Access Control Panel - 2 Door - A22

by CDVI
Original price $1,062.99 - Original price $1,062.99
Original price
$1,062.99
$1,062.99 - $1,062.99
Current price $1,062.99
Main Features
  • Controls 2 doors and 2 readers
  • Pre-assembled universal plug-in power supply (120V/240V) included
  • Convert any A22 door controller to an A22EC elevator controller by simply updating the firmware for free (up to 256 floors).
  • On-board Ethernet Port with AES 256-bit encryption
  • On-board RS485 communication bus, 1220 m (4000 feet)
  • On-board Embedded Web Server
  • Lock outputs: 2 (750mA @ 12VDC/each)
  • Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250VAC,7A @ 125VAC, 7A @ 30VDC
  • 6 multi-purpose inputs (12 using zone doubling)
  • Up to 10,000 users, cards and 25,000 even buffer
