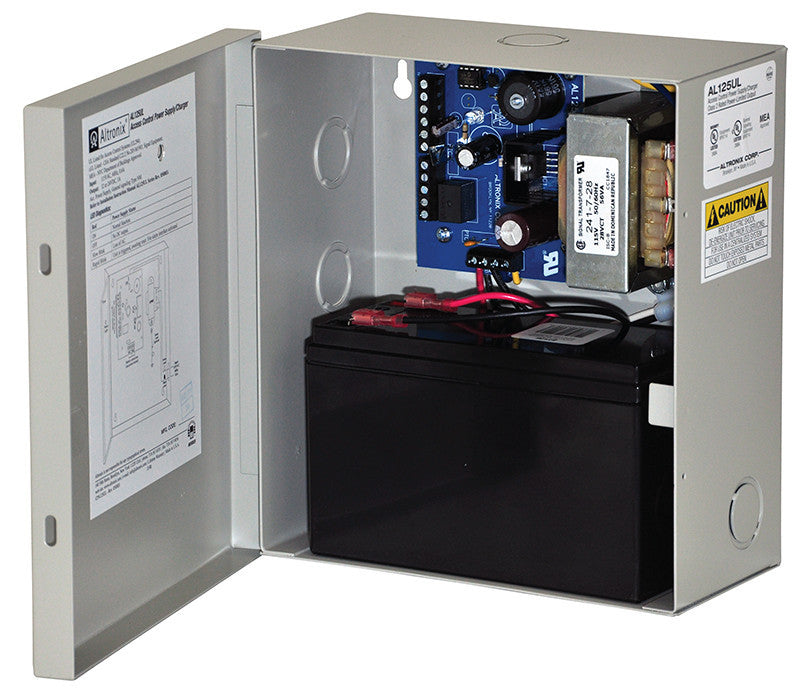

Altronix Access Control Power Supply Charger 2 PTC Class 2 Outputs 12/24VDC @ 1A 115VAC BC100 Enclosure - AL125UL

Input/output

• Input 115VAC, 50/60Hz, 0.6A.
• Access control trigger input.
• 12VDC or 24VDC selectable outputs.
• 1A supply current.
• Two (2) Class 2 Rated power limited outputs.
• Fail-Safe/Fail-Secure lock output (switched).
• Auxiliary power output (unswitched).
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

*Battery Backup* BATTERY ARE SOLD SEPARATELY

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Indicator (LED)

• Unit Status: Normal / No Output / Loss of AC / Triggered.

Temperature

• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70ºC ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

• 12VDC: 6 BTU/Hr.
• 24VDC: 6 or 12 BTU/Hr.
• System AC input VA requirement: 55.2VA.
